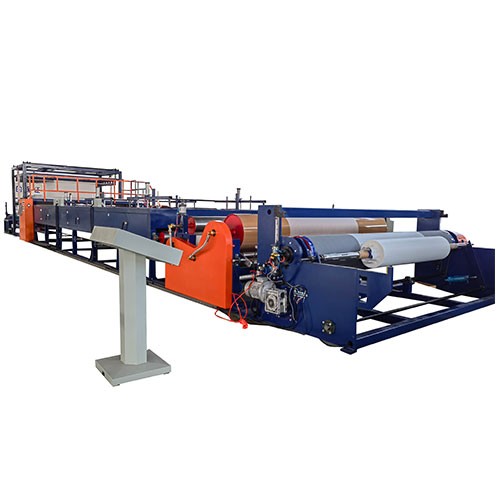

Powder scattering laminating machine

This machine applies to the lamination materials such as sandpaper, velvet and sponge.

1、Effective laminating width：       1650mm (Laminating roller width 1750mm)

2、 Designed mechanical speed :     55m/min

3、 Coating lamination speed :       25-50m/min

4.  Substrate:                      Sandpaper, Velcro, Sponge,etc. soft materials.

5、Tension control accuracy:         ±0.5kg

6、Adhesive :                      PUR Hot melt glue

7、Coating method:                 Roller coating

8、Coating glue amount:             Dry glue amount 15-20g/㎡

9、Sandpaper Max unwind diameter:  φ1400mm (paper core:3")

11、Velcro Max unwind diameter:     φ800mm (paper core:3")

12、Max wind diameter：            φ500mm (paper core:3")

Feature:

Hot-Melt machines are multipurpose lines that allow to laminate various materials (flexible and expanded plastics, technical materials, rubbers, textiles, papers, films, etc.), both in sheets and rolls.

The lamination process consists in coating with hot-melt glue (EVA-PE-PUR) one of the supports that will be laminated and then in calandering it with the second product. It is possible to realize the machine with different widths and configurations.

With over 50 years in lamination field, Yessing Machinery's lamination machine has been applied in Sports / Textile / Bedding / Medical / Military / Building/ Composite material industries from 46 countries! We have abundant experiences in manufacturing Textile lamination machine, EVA lamination machine, PVC lamination machine, Extrusion coating machine, customized coating machine ... and so on.
